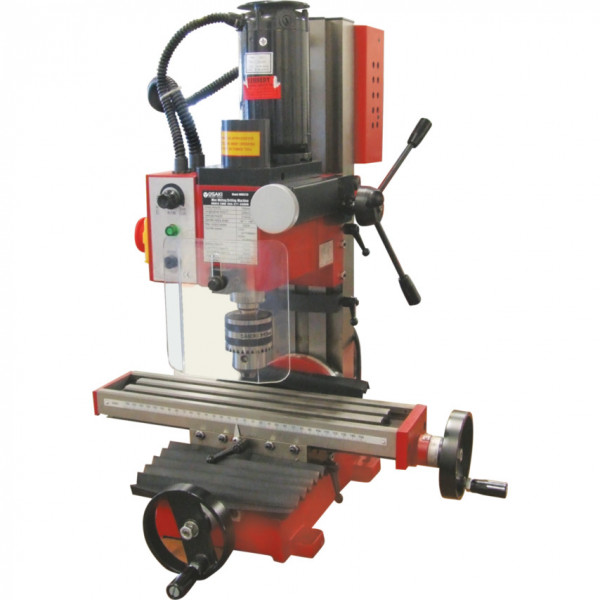

A must for model makers. Bench mounted, this Milling/Drilling machine has a spindle rotation of of up to 45", making it a very capable tool. An assortment of useful accessories are available. This versatile tool has been manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoHS compliant.
Specifications:
Swing over bed: 180mm.
Drilling capacity: 13mm.
End milling capacity: 16mm.
Face milling capacity: 30mm.
Headstock travel (Z): 180mm.
Cross axis: 100mm.
Longitudinal axis: 220mm.
Spindle rotary angle: +/-45".
Output power: 350W.
Spindle speed: Low range 0-1100rpm +/-10%. High range: 0-2500rpm +/-10%.
Spindle taper: MT3 or R8.
T-slot: 12mm.
Net/gross weight: 50/68kg.
Packing size: 540 x 500 x 760mm.
FOR DIY USE
Not warranted for industrial use.
